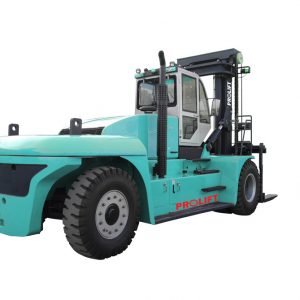

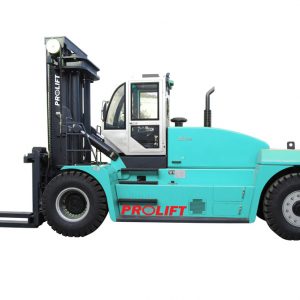

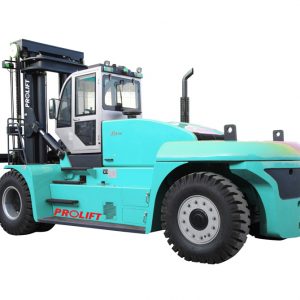

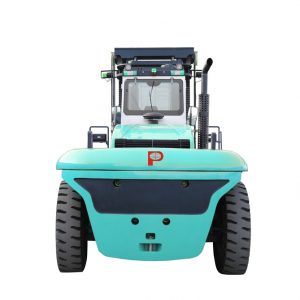

16 Ton Diesel Forklift
Quick EnquiryPROLIFT 16 Ton FD160
– Cummins QSB6.7 Engine.
– Rated capacity: 16000kg at 600mm load center.
– Torque converter transmission (automatic transmission): power shift.
– UK Cummins engine QSB6,7( 6 Cylinder, 119KW,6.7L).
– Duplex Mast ( 2-Stage Mast )3 meter.
– Side Shift and Fork Positioner.
– 4th Control Valve and Lever.
– Forks in 2120mm length.
– Pneumatic tires (2 front wheel, 2 rear wheel).
– Rotating beacon.
– Quality improved battery, ” Camel ” Brand ( Standard equipment ).
– Tiancheng seat with belt.
ForkLift Specifications
|
General
|
1 | Model | FD160T-MWK3 | ||||
| 2 | Power Type | Diesel | |||||
| 3 | Rated Capacity | kg | 16000 | ||||
| 4 | Load Centre | mm | 1220 | ||||
|
Characteristic & Dimension
|
5 | Lift height | mm | 4000 | |||
| 6 | Mast tilt angle | F/R | Deg | 6°/12° | |||
| 7 |
Fork
|
L×W×T | mm | 2440×250×105 | |||
| 8 | Regulating range | mm | 810-2140 | ||||
| 9 | Max. side shifter | mm | 660(±330) | ||||
| 10 | Front overhang (Wheel center to fork face) | mm | 1060 | ||||
| 11 | Rear Overhang | mm | 1000 | ||||
| 12 | Ground clearance (bottom of mast) | mm | 220 | ||||
| 13 |
Overall demensions
|
Overall length (include forks) | mm | 8300 | |||
| 14 | Overall width | mm | 2535 | ||||
| 15 |
Overall height
|
Driver’s cab | mm | 3280 | |||
| 16 | Mast | mm | 3915 | ||||
| 18 | Min. turning radius (outside) | mm | 5300 | ||||
| 19 |
Types
|
Front |
12.00-24-20PR
|
||||
| 20 | Rear | ||||||
| 21 |
Tread
|
Front | mm | 1850 | |||
| 22 | Rear | mm | 2120 | ||||
| 23 | Wheelbase | mm | 3800 | ||||
|
Performance
|
24 |
Speed
|
Travel (Unladen) | km/h | 30 | ||
| 25 | Lifting (Laden) | mm/s | 320 | ||||
| 26 | Lowering (Laden) | mm/s | 380 | ||||
| 27 | Max.Drawbar pull (Laden) | KN | 125 | ||||
| 28 | Max.Gradeability (Laden) | % | 25 | ||||
|
Weight
|
29 | Self weight | kg | 25800 | |||
| 30 |
Weight Distribution
|
 Laden
|
Front   Axle | kg | 38400 | ||
| 31 | Rear Axle | kg | 3400 | ||||
| 32 |
Unladen
|
Front   Axle | kg | 12800 | |||
| 33 | Rear Axle | kg | 13000 | ||||
|
Power & Transmission
|
34 | Battery | Voltage/Capacity | V/Ah | 2×12/120 | ||
| 35 |
Engine
|
Model | QSB6.7-C190 | ||||
| 36 | Manufacture | Cummins | |||||
| 37 | Rated output/r.p.m. | kw | 142/2300 | ||||
| 38 | Rated torque/r.p.m. | N·m | 930/1500 | ||||
| 39 | No.of cylinder | 6 | |||||
| 40 | Bore×Stroke | mm | 107×124 | ||||
| 41 | Displacement | L | 6.7 | ||||
| 42 | Fuel tank capacity | L | 150 | ||||
| 43 |
Transmission
|
Manufacture | ZF | ||||
| 44 | Type | 3WG171 | |||||
| 45 | Stage | F/R | 3/3 | ||||
| 46 |
Drive axle
|
Manufacturer | TCM | ||||
| 47 | service brake | Wet Multi-disk Brake | |||||
| 48 | parking brake | Caliper disc brake | |||||
| 49 | Operating pressure (for attachments) | Mpa | 19 | ||||
Mast Specfications
|
Model
|
Max. fork height（mm）
|
Mast height（mm）
|
Load center |
Tilt range (FWD/BWD)
|
Capacity（Kg） | Mast weight（Kg） |
| FD160T | FD160T | FD160T | ||||
| M300 | 3000 | 3415 | 1220 | 6°/12° | 16000 | 25560 |
| M350 | 3500 | 3665 | 1220 | 6°/12° | 16000 | 25680 |
| M400 | 4000 | 3915 | 1220 | 6°/12° | 16000 | 25800 |
| M450 | 4500 | 4165 | 1220 | 6°/12° | 16000 | 26210 |
| M500 | 5000 | 4465 | 1220 | 6°/6° | 15000 | 26330 |
| M550 | 5500 | 4715 | 1220 | 3°/6° | 14000 | 26450 |
| M600 | 6000 | 5015 | 1220 | 3°/6° | 13000 | 26570 |
